Sample Valve Information:

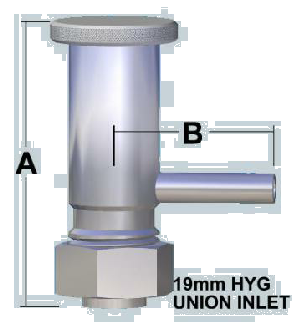

Geordi Hyg Sample Valve Info

SIZE

A

B

19mm

~92

~50


Inlet: 19mm Hygienic Union (Weld on Liner)

19mm Hyg Seal: EPDM as Std

Seat: Metal-Metal (316 Stainless)

Stem Seal: Buna O'ring

Body: Ø28.5mm 316 Stainless

Outlet: Ø9mm Stub

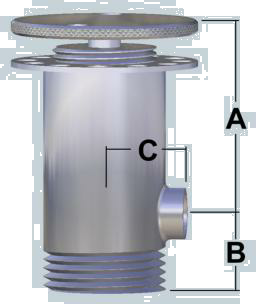

Geordi BSP Sample Valve Info

SIZE

A

B

9mm

~81

~45


Inlet: 9mm BSP Male

Seat: Metal-Metal (316 Stainless)

Stem Seal: Buna O'ring

Body: Ø25mm Stainless 316

Outlet: Ø9mm Stub

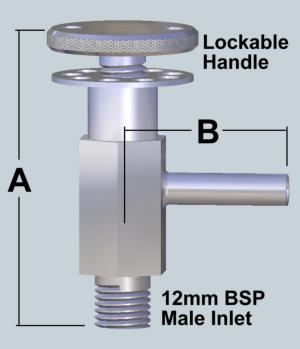

Geordi BSP Lockable Sample Valve

SIZE

A

B

12mm

~88

~50


Inlet: 12mm BSP Male

Seat: Solid Teflon Plug onto 316 Stainless

Stem Seal: Buna O'ring

Body: 21mm Hex 316

Outlet: 9mm Stub

Handle: Lockable Ø44.5mm 316 Stainless


Very versatile sample valve with the option to securely lock the handle closed (padlock not included).

Geordi Flat Faced (BSM Modified) Lockable Sample Valve

SIZE

A

B

C

25mm

~70

~30

~38


Inlet: 25mm Flat Faced Male

Seat: Solid Teflon Plug onto 316 Stainless

Stem Seal: Buna O'ring

Body: Ø45mm Stainless 316

Outlet: 19mm Stub

Handle: Lockable Ø69.5 316 Stainless


Very versatile sample valve with the option to securely lock the handle closed (padlock not included).
