Flat Faced Fitting Dimensions:

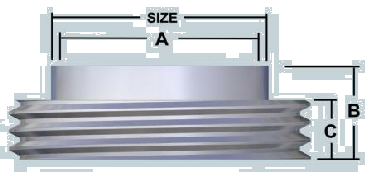

FLAT FACED MALE PART DIMS

SIZE

A

B

C

25.4

38.1

50.8

63.5

76.2

101.6

152.4

22.2

34.9

47.6

60.3

73

98.4

149.2

19

19

19

19

19

19

14

14

14

14

14

14
Standard Material: 316

FLAT FACED LINER DIMENSIONS

SIZE

A

B

TPI

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

41.3

54

66.7

79.4

92.1

117.5

142.9

168.3

19

19

19

19

19

19

25

27

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2
Standard Material: 316
 Also available in 2205/2RK65 Grades

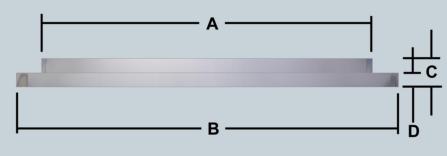

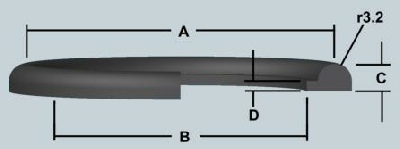

FLAT FACED SEAL DIMENSIONS

SIZE

A

B

25mm

38mm

50mm

63mm

76mm

100mm

152mm

33.3

46.0

58.7

71.4

84.1

109.5

160.3

22.2

34.9

47.6

60.3

72.4

98.4

149.2

C: 7.0

D: 2.0
See product pages for
 available seal materials.

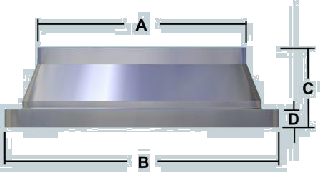

FLAT FACED BLANK CAP DIMS

SIZE

A

B


25mm

38mm

50mm

63mm

76mm

100mm

127mm

152mm

32.5

45.2

57.9

70.6

83.3

108.7

134.1

159.5

41.3

54

66.7

79.4

92.1

117.5

142.9

168.3

C: 7.0 to 9.0

D: 2.5 to 4.0


Material: 316

Flat Faced couplings/fittings/unions are now the standard hygienic option used in the food and dairy industries.

Also called BSM modified or BSM lipped removed, they offer a host of advantages over other coupling types including no crevices, easy access, compatibility and range of gasket materials.
