Geordi Flat Faced (BSM Modified) Lockable Sample Valve |
|
||||
|
|

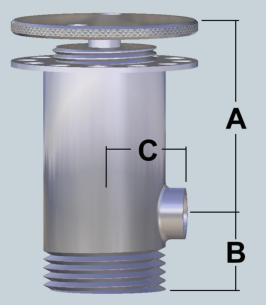

Size |
A | B | C | ||
| 25mm | ~70 | ~30 | ~38 | |||
|
Inlet: 25mm Flat Faced Male Seat: Solid Teflon Plug onto 316 Stainless Stem Seal: Buna O'ring Body: Ø45mm Stainless 316 Outlet: 19mm Stub Handle: Lockable Ø69.5 316 Stainless
Very versatile sample valve with the option to securely lock the handle closed (padlock not included). |
||||||
|
|
|||||
