Flat Faced couplings/fittings/unions are now the standard hygienic option used in the food and dairy industries.
Also called BSM modified or BSM lipped removed, they offer a host of advantages over other coupling types including no crevices, easy access, compatibility and range of gasket materials.
|

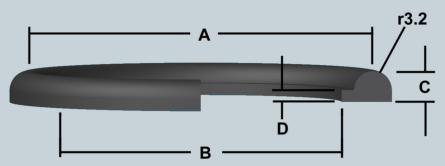

Flat Face Seals |
|
|||
|
|
Size |
A | B | ||
|
25mm 38mm 50mm63mm 76mm100mm 152mm |
33.3 46.0 58.771.4 84.1109.5 160.3 |
22.2 34.9 47.660.3 72.498.4 149.2 |
|||
|
C: 7.0 D: 2.0
See product pages for available seal materials. |
|||||
|
|
||||
