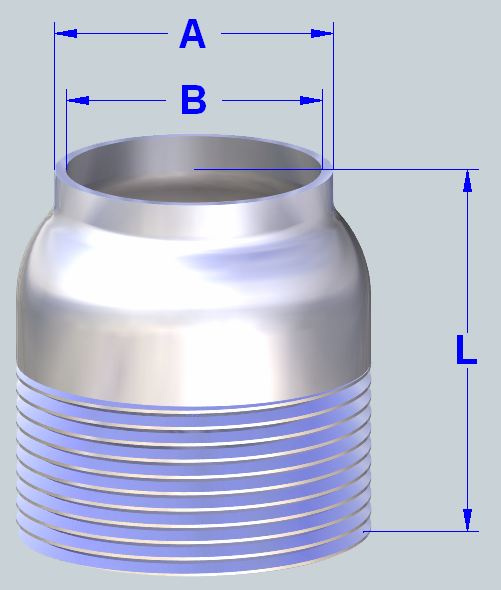

BSP Tube Toe Nipples

SIZE (A) B L
12.7 9.5 40
19.1 15.9 40
25.4 22.2 42
31.8 28.6 45
38.1 34.9 48
50.8 47.6 50
63.5 60.3 53
76.2 73 55
101.6 98.4 60





Thread: Standard BSP taper thread as per nominal size
