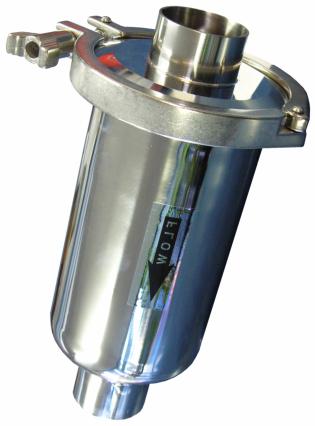

Geordi Inline Strainer Basket:Inlet Area Ratio |
|
|||||
|
These numbers are for strainers with standard 1.6mm perforated baskets with 36% open area - no fine mesh inserts |
|||||||
|
Size mm |
Basket Diam mm |
Basket
Length mm |
Basket Area
(mm^2) |
Inlet Area mm^2 |
Basket Area: Inlet Ratio |
||
|
25.4 38.1 50.8 63.5 76.2 101.6 127 154.2 |
76
76 76 76 76 89 146 146 |
150
150 150 300 300 500 600 750 |
12893.1
12893.1 12893.1 25786.2 25786.2 50328.3 99073.3 123841.6 |
387.1
956.6 1779.5 2855.8 4185.4 7604.7 12037.4 17907.9 |
33.3
13.5 7.2 9.0 6.2 6.6 8.2 6.9 |
||
|
Basket
Area:Inlet Ratio is a measure of how many times greater the
basket total "hole" area is
compared to the inside area of the inlet or outlet tube. |
|||||||
|
For other perforated sizes - download Area Ratio Spreadsheet |
|
|||||
