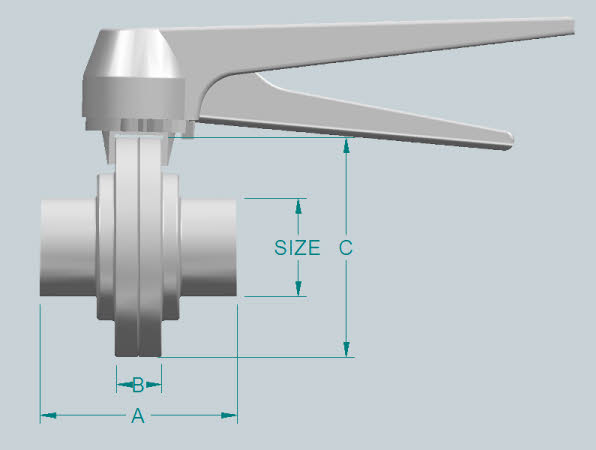

Approximate Dimensions for Geordi Butterfly Valve
  SIZE A C
12mm

18mm

25mm

38mm

50mm

63mm

76mm

100mm

150mm

50

50

50

50

52

56

56

64

80

85

85

85

85

100

110

124

154

223















Geordi Butterfly Valves are obtained from hot forged & heat treated pieces in AISI 316/L material. They are assembled together with a hollow screw head, alternated to allow the ability to interchange with various standardizations. Sizes range from 1"(25mm) to 6"(152mm). They resist to 15Bar working pressure. The standard seal is made from silicone elastomer, however different materials are available upon request. These valves can be supplied with manual configurations or pneumatic actuators in accordance with your requirements. Standard finish is polished outside and satin inside.



Click Here for Valve Body Specs

Click Here for Handle

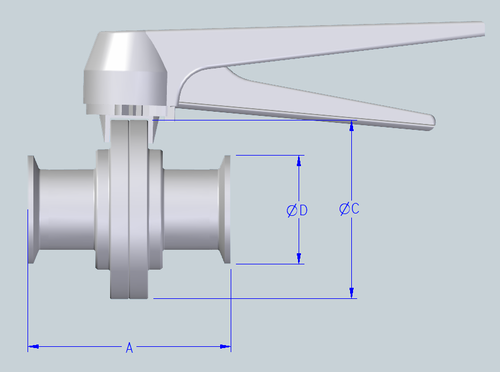

Approximate Dimensions for Geordi Ferrule Ended Butterfly Valve

  SIZE A C D
25mm

38mm

50mm

63mm

76mm

100mm

75

75

77

81

81

89

85

85

100

110

124

154

50

50

64

77

91

119















Geordi Butterfly Valves are obtained from hot forged & heat treated pieces in AISI 316/L material. They are assembled together with a hollow screw head, alternated to allow the ability to interchange with various standardizations. Ferrule ended sizes range from 1"(25mm) to 4"(102mm). They resist to 15Bar working pressure. The standard seal is made from silicone elastomer, however different materials are available upon request. These valves can be supplied with manual configurations or pneumatic actuators in accordance with your requirements. Standard finish is polished outside and satin inside.



Click Here for Valve Body Specs

Click Here for Handle
