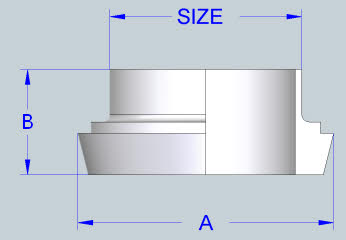

DIN Liner Dimensions




Size

 A B
12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

 22.2

28

36

44

50

56

68

86

100

121

 17

17

18

22

25

26

28

32

37

44



Standard Material: 316

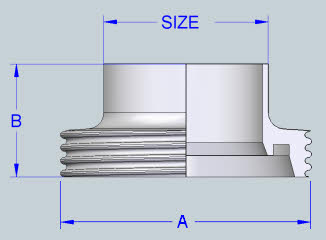

DIN Male Part


Size

 A B TPI
12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

 27.5

34

43.5

52

58

65

78

95

110

130

 21

21

24

29

32

33

35

40

45

54

 8

8

6

6

6

6

6

6

4

4


Standard Material: 316

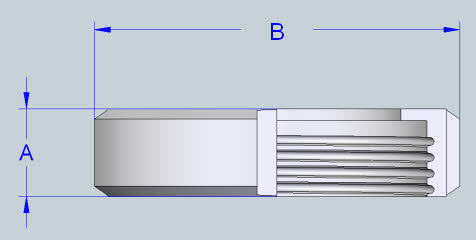

DIN Slotted Nut


Size

 A B Slots
12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

 18

18

21

21

21

21

22

25

29

31

 38

44

54

63

70

78

92

112

127

148

 4

4

4

4

4

4

4

4

4

4


Standard Material: 304

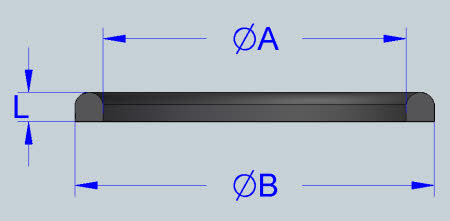

DIN Gaskets


Size

 A B C
12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

 12

18

23

30

36

42

54

71

85

104

 20

26

33

40

46

52

64

81

95

114

 4

4

5

5

5

5

5

5

5

6


Note: All 12.7 & 19.1 sizes are round cross-section. 19.1mm comes in 2 sizes - small & large
