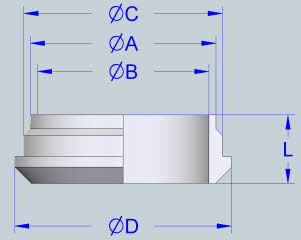

3A Liner Dimensions




Size A

 B C D L

25.4

38.1

50.8

63.5

76.2

101.6

22.6

35.6

48.6

60.3

72.9

97.6



 29.5

42.6

55.7

68.8

81.9

108.1

 33.3

46.8

60.3

73.8

87.3

114.3

 34.9

38.1

38.1

44.5

44.5

44.5



Standard Material: 316

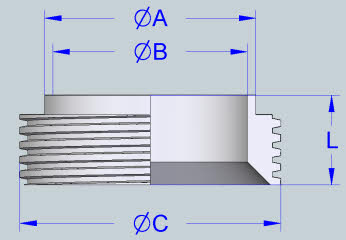

3A Male Part


Size A

 B C L TPI

25.4

38.1

50.8

63.5

76.2

101.6

22.6

35.6

48.6

60.3

72.9

97.6

 37.1

50.7

64.2

77.7

91.2

119.3

 34.9

38.1

38.1

44.5

44.5

44.5

 8

8

8

8

8

6


Standard Material: 316

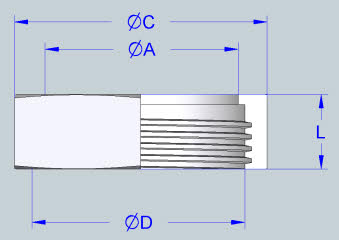

3A Hex Nut


Size

 A D C L TPI

25.4

38.1

50.8

63.5

76.2

101.6

 30.3

43.4

56.5

69.6

82.7

108.9



 38

51.5

65

78.6

92.1

120.1

 46

61.1

76.1

91.3

106.4

137.6

 23

24.6

76.2

91.3

106.4

137.6

 8

8

8

8

8

6


Standard Material: 304
