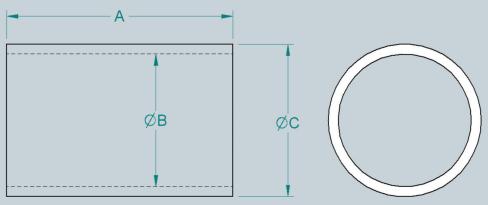

Geordi Lantern Type Sightglass Spare Lenses
	GLASS				POLYCARBONATE
	Size	A	B	C	A	B	C
	25mm 38mm 50mm 63mm 76mm 100mm 150mm	100 100 100 100 100 100	20.3 35.4 49.3 61.6 74.8 100	26 42 56 70 85 109.6	80 100 100 100 100 100	19 38.2 50 63.4 80 96.8	25 44 57.3 70 84 100
	Click here for Maximum Pressure Estimator

Geordi Union Type Sightglass Spare Lenses
	GLASS				POLYCARBONATE
	Size	A	B	C	A	B	C
	25mm 38mm 50mm 63mm 76mm 100mm 150mm	80 80 80 100 100 100	35.2 54.2 61.6 74.8 100	42 47 70 85 109.6	80 81.5 80 100 100 100	19 38 51 63.4 80 96.8	26 44.7 57.3 70 84 100
	Click here for Maximum Pressure Estimator

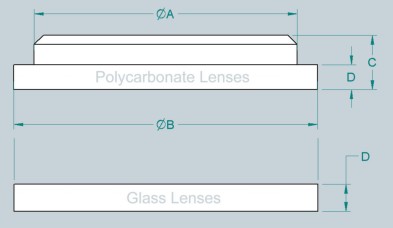

Spare Lenses for Geordi Porthole & Bullseye Sightglasses
	GLASS				POLYCARBONATE
	Size	B	Std	H/Duty	A	B	C	D
			D	D
	25mm 38mm 50mm 63mm 76mm 100mm 125mm 150mm	43 52-54 64 78 92 117 142 168	6 6 6 6 6 6 6 6	12 12 12 12 12 12 12 12	33 45 58 71 83 108 134	42 55 67 80 93 118 140	11.5 11.5 11.5 11.5 11.5 11.5 11.5	6 6 6 6 6 6 6
