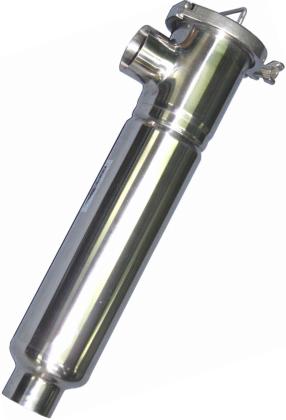

Geordi Right Angle Filters/Strainers






Standard Fine Mesh Strainers should never be back-flushed unless specially modified to handle it.



Standard Perforated Mesh (0.5mm and larger filtration)

12mm Geordi Right Angle Strainer Basic Dimensions

19mm Geordi Right Angle Strainer Basic Dimensions

25mm Geordi Right Angle Strainer Basic Dimensions

38mm Geordi Right Angle Strainer Basic Dimensions

50mm Geordi Right Angle Strainer Basic Dimensions

63mm Geordi Right Angle Strainer Basic Dimensions

76mm Geordi Right Angle Strainer Basic Dimensions

101mm Geordi Right Angle Strainer Basic Dimensions

125mm Geordi Right Angle Strainer Basic Dimensions

152mm Geordi Right Angle Strainer Basic Dimensions



Fine Mesh (finer than 0.5mm filtration)

25mm Geordi Right Angle Strainer Basic Dimensions

38mm Geordi Right Angle Strainer Basic Dimensions

50mm Geordi Right Angle Strainer Basic Dimensions

63mm Geordi Right Angle Strainer Basic Dimensions

76mm Geordi Right Angle Strainer Basic Dimensions

101mm Geordi Right Angle Strainer Basic Dimensions

125mm Geordi Right Angle Strainer Basic Dimensions

152mm Geordi Right Angle Strainer Basic Dimensions





Different basket screens available see technical page for more available sizes and open areas.



We are able to adapt any of our strainers to your customised requirements -

please contact our friendly sales team to find out more...










Geordi Right Angle Strainer Basket:Inlet Area Ratio


These numbers are for strainers with standard 1.6mm perforated baskets with 36% open area -

 no fine mesh inserts


Size

mm

Basket Diam

mm

Basket

Length mm

Basket Area

(mm^2)

Inlet Area

mm^2

Basket Area:

Inlet Ratio

25.4

38.1

50.8

63.5

76.2

101.6

127

154.2

76

76

76

76

76

112

146

146

150

150

300

300

600

600

900

900

12893.1

12893.1

25786.2

25786.2

51572.4

76001.4

148609.9

148609.9

387.1

956.6

1779.5

2855.8

4185.4

7604.7

12037.4

17907.9

33.3

13.5

14.5

9.0

12.3

10.0

12.3

8.3

Basket Area:Inlet Ratio is a measure of how many times greater the basket total "hole" area is

compared to the inside area of the inlet or outlet tube.

For other perforated sizes - download Area Ratio Spreadsheet
