Flat Faced couplings/fittings/unions are now the standard hygienic option used in the food and dairy industries.
Also called BSM modified or BSM lipped removed, they offer a host of advantages over other coupling types including no crevices, easy access, compatibility and range of gasket materials.
 |

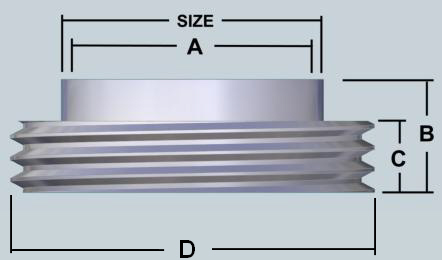

Flat Face Male Part |  |
||||
|
|
Size |
A | B | C | ||
|
25mm 38mm 50mm63mm 76mm101mm 150mm |
22.2 34.9 47.660.3 7398.4 149.2 |
19 19 1919 1919 |
4.2 4.2 4.24.2 4.24.2 |
|||
|
Standard Material: 316 Also Available in 2205/2RK65 Grades
|
||||||
 |
 |
|||||
|
Flat Face Liner | |
||||
|
|
Size |
B | C | D | ||
|
25mm 38mm 50mm63mm 76mm100mm 127mm150mm |
41.3 54 66.779.4 92.1117.5 142.9168.3 |
19 19 1919 1919 2527 |
4.2 4.2 4.24.2 4.24.2 4.24.2 |
|||
|
Standard Material: 316 Also Available in 2205/2RK65 Grades
|
||||||
|
|
|||||
|
Flat Face Seals | |
|||
|
|
Size |
A | B | ||
|
25mm 38mm 50mm63mm 76mm100mm 152mm |
51 65 8092 105130 185 |
24 24 25.226.4 26.425 28.4 |
|||
|
See product pages for available seal materials.
|
|||||
|
|
||||
|
Flat Face Blank Caps | |
|||
|
|
Size |
A | B | ||
|
25mm 38mm 50mm63mm 76mm100mm 127mm152mm |
32.5 45.2 57.970.6 83.3108.7 134.1159.5 |
41.3 54 66.779.4 92.1117.5 142.9168.3 |
|||
|
C: 7.0 to 9.0 D: 2.5 to 4.0
Standard Material: 316 |
|||||
|
|
||||
