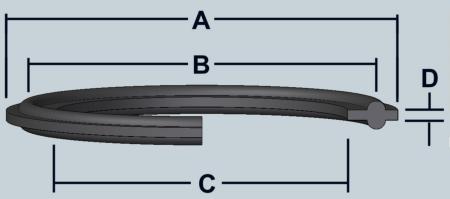

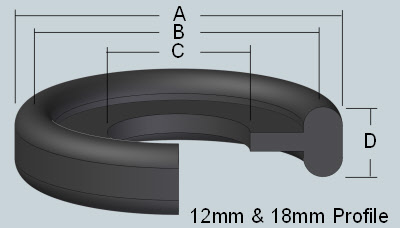

Ferrule Standard Gaskets - Approximate Dimensions






Size

A B C D

12mm

18mm

25mm

31mm

38mm

50mm

63mm

76mm

101mm

150mm

200mm

250mm

300mm

22.0

22.0

50.5

50.5

50.5

64.0

77.5

91.0

110.0

166.1

217.5

268.5

319.5

20.0

20.0

43.5

43.5

43.5

56.5

70.5

83.5

119.0

157.0

207.2



308.8

9.5

15.9

22.2

28.6

34.9

47.6

60.3

73.0

98.4

149.2

200.0

250.8

301.6

4.8

4.6

2

2

2

2

2

2

2

2

2

2

2
