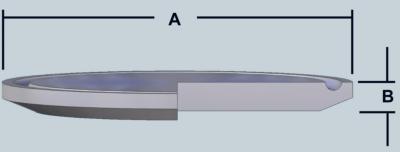

Ferrule Caps - Approximate Dimensions |
|
|||
|
|
Size |
A | B | ||
|
12mm 18mm 25mm 31mm 38mm 50mm 63mm 76mm 101mm 150mm 200mm 250mm 300mm |
25.1 25.1 50.5 50.5 50.5 64.0 77.5 91.0 119.0 166.1 217.5 268.5 319.5 |
4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 9.0 9.0 12.0 12.0 |
|||
|
Standard Material: 316 |
|||||
|
|
||||
