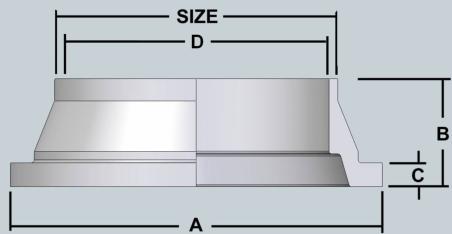

BSM Liner Dimensions




Size

 A B C D
25.4

38.1

50.8

63.5

76.2

101.6

152.4		 41.3

54

66.7

79.4

92.1

117.5

168.5		 19

19

19

19

19

19

24		 4.2

4.2

4.2

4.2

4.2

4.2

 22.2

34.9

47.6

60.3

73.0

98.4

149.2



Standard Material: 316



Also Available in 2205/2RK65 Grades
