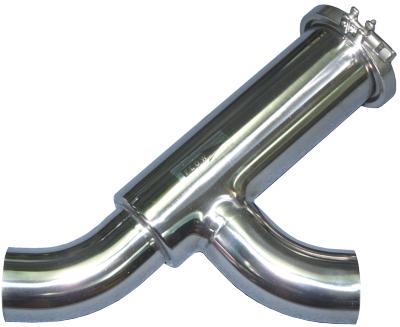

Geordi 'Y' Type Filters/Strainers








  The Geordi Y Strainer probably has the easiest basket to clean of all the Geordi strainer types.





Standard Fine Mesh Strainers should never be back-flushed unless specially modified to handle it.



Standard Perforated Mesh Options (0.5mm Filtration and Larger)

25mm Geordi Y Type Strainer Basic Dimensions

38mm Geordi Y Type Strainer Basic Dimensions

50mm Geordi Y Type Strainer Basic Dimensions

63mm Geordi Y Type Strainer Basic Dimensions

76mm Geordi Y Type Strainer Basic Dimensions

100mm Geordi Y Type Strainer Basic Dimensions

125mm Geordi Y Type Strainer Basic Dimensions

150mm Geordi Y Type Strainer Basic Dimensions





Fine Mesh Options (<0.5mm Filtration)

25mm Geordi Fine Mesh Y Type Strainer Basic Dimensions









Different basket screens available see technical page for more available sizes and open areas. Wedgewire Baskets also available.

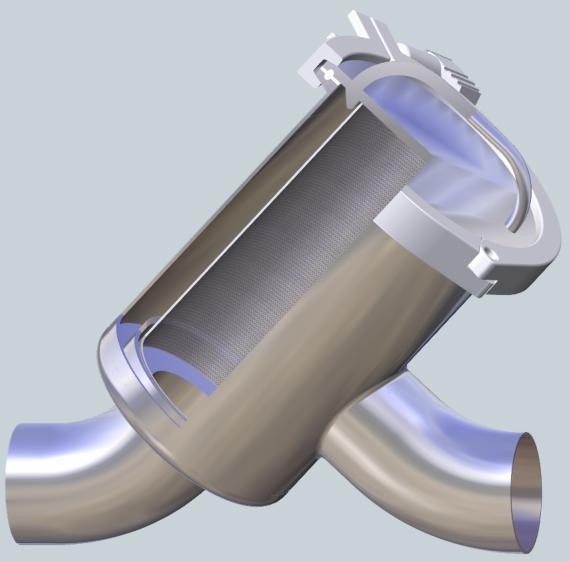

Standard Perf Mesh

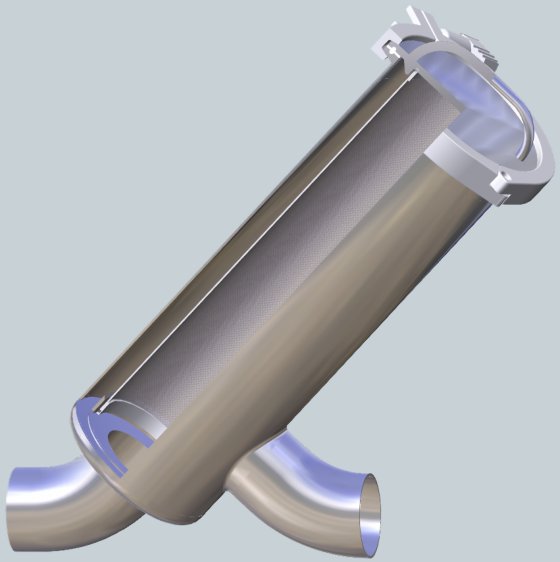

Typical Fine Mesh Option



Some sizes require extended basket lengths for Fine Mesh options.



Fine Mesh Y Strainers come standard with ORing seals for basket ends.









Geordi 'Y' Type Strainer Basket:Inlet Area Ratio


These numbers are for strainers with standard 1.6mm perforated baskets with 36% open area -

 no fine mesh inserts


Size

mm

Basket Diam

mm

Basket

Length mm

Basket Area

(mm^2)

Inlet Area

mm^2

Basket Area: Inlet Ratio
25.4

38.1

50.8

63.5

76.2

101.6

127

154.2

38.1

38.1

76

76

76

96

147

146

150

150

150

300

300

428

500

640

6463.5

6463.5

12893.1

25786.2

25786.2

46469.4

83126.5

105678.2

387.1

956.6

1779.5

2855.8

4185.4

7604.7

12037.4

17907.9

16.7

6.8

7.2

9.0

6.2

6.1

6.9

5.9

Basket Area:Inlet Ratio is a measure of how many times greater the basket total "hole" area is

compared to the inside area of the inlet or outlet tube.

For other perforated sizes - download Area Ratio Spreadsheet
