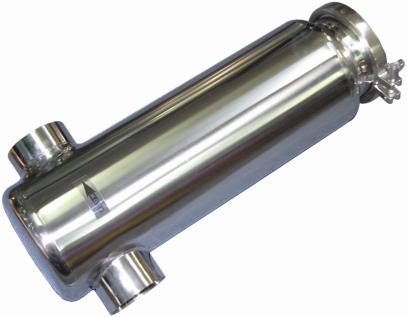

Geordi 'T' Type Filters/Strainers






Standard Fine Mesh Strainers should never be back-flushed unless specially modified to handle it.



25mm Geordi T Type Strainer Basic Dimensions

38mm Geordi T Type Strainer Basic Dimensions

50mm Geordi T Type Strainer Basic Dimensions

63mm Geordi T Type Strainer Basic Dimensions

76mm Geordi T Type Strainer Basic Dimensions

100mm Geordi T Type Strainer Basic Dimensions











Different basket screens available see technical page for more available sizes and open areas. Wedgewire Baskets also available.








Geordi 'T' Type Strainer Basket:Inlet Area Ratio


These numbers are for strainers with standard 1.6mm perforated baskets with 36% open area -

 no fine mesh inserts


Size

mm

Basket Diam

mm

Basket

Length mm

Basket Area

(mm^2)

Inlet Area

mm^2

Basket Area: Inlet Ratio
25.4

38.1

50.8

63.5

76.2

101.6

127

154.2

76

76

76

95

95

146

146

157

50

150

300

400

400

400

600

900

12893.1

12893.1

25786.2

42977.0

42977.0

66048.8

99073.3

159806.5

87.1

956.6

1779.5

2855.8

4185.4

7604.7

12037.4

17907.9

33.3

13.5

14.5

15.0

10.3

8.7

8.2

8.9

Basket Area:Inlet Ratio is a measure of how many times greater the basket total "hole" area is

compared to the inside area of the inlet or outlet tube.
